MegaBox modular battery energy storage 24V 314 Ah, 8.0 kWh


(Code:BATGWL0233)

Stock availability:
Main warehouse External warehouse External warehouse 2
Usual availability approx 2 weeks
List price: 1,280.63 EUR
Transport restrictions
Goods with high weight, oversized or in ADR mode are available only through specific transport.
Add to cart for shipping price.
Code BATGWL0233
PN MB24314
EAN
Warranty 12 months
Support bat@100mega.cz
Brand 100MEGA ENERGY
100MEGA Distribution s.r.o.
Železná 7, 619 00 Brno, Česká Republika
info@100mega.cz
www.100mega.cz
Send to friend
Product details

MegaBox LV Energy Box 8.0 kWh (24 V | 314 Ah)

  • Structurally simple and flexible energy storage assembled from battery cells connected in series with a total nominal capacity of 8.04 kWh and standardized mechanical and electrical components. The customer receives a solution with superior lifespan, utility, and future flexibility.
  • The battery storage contains the safest available lithium battery technology and the best price/performance ratio of LiFePO4 cells in a safe low-voltage 24 V module. The module is assembled from 8 cells, each with a voltage of 3.2 V (314 Ah). Thanks to careful cell selection and BMS, maximum power and capacity are always available. Communication with the battery storage is provided via a mobile phone with Bluetooth connection.
  • The module consists of a robust yet lightweight construction made of hardened aluminum that can be assembled very easily. This ensures mechanical protection and dimensional stability of the cells through compression. The module includes a mounting platform for electrical components.
  • Modules can be easily fixed to a mobile platform or placed in a stationary installation with minimal space requirements, also thanks to stackability. Side-by-side placement or distributed arrangement connected into one system is also possible.
  • Thanks to the standardization, availability, and interchangeability of all module parts, reliable warranty and post-warranty service is ensured.
Parameter Value Note
Nominal voltage 25.6 V
Nominal capacity 314 Ah / 8.04 kWh
Max. continuous charging current 200 A recommended max. 157 A
Max. continuous discharging current 200 A recommended max. 157 A
Box operating temperature +5 to +40 °C
Cycle life 6000 60% DOD at 0.3C/0.3C (+25 °C), > 60% SOH (State of Health)
Charging cut-off 3.70 V when this value is reached on any battery cell
Charging restart 3.50 V drop on the cell that exceeded 3.70 V
Discharging cut-off 2.70 V when any battery cell drops to this value
Discharging restart 3.00 V for the cell when voltage drops to 2.70 V
Overcurrent cut-off 250 A for charging and discharging (BMS delay 120 s), circuit breaker delay depending on overload type
Max. temperature - charging/discharging cut-off +70 °C / +70 °C restart at +60 °C / +60 °C
Min. temperature – charging cut-off 0 °C restart at +5 °C
BMS self-consumption in operating state < 10 mA
BMS self-consumption in off state < 0.1 mA
BMS shutdown due to undervoltage 20.00 V
Balancing current 2 A active balancer
Main circuit breaker 200 A trip characteristic C
Assembled module dimensions L / W / H 675 × 185 × 355 mm height incl. bottom and top M10 cap nuts
Weight of Al box alone 7.7 kg incl. mounting platform for el. installation
Total module weight 54 kg incl. el. equipment
Height of space above cell terminals 30 mm approximate value (depends on cell type)
Space for el. components on el. platform L / W / H 670 × 185 × 60 mm

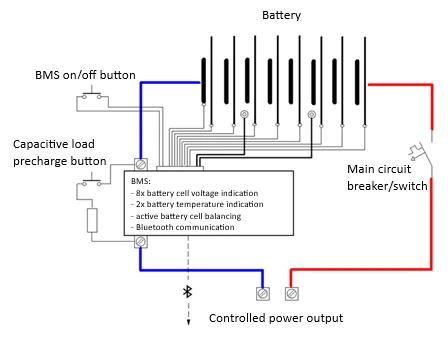

Electrical diagram – 24 V module (314 Ah)

DIAGRAM

Note:
The built-in BMS cannot be reconfigured, only the battery status can be monitored!
The BMS with balancer is set to specific parameters of the battery storage. Any unauthorized intervention or change of set parameters will result in warranty void.

Intended use:

  • For caravans, boats, cottages, residential and other projects.
  • For easy replacement of original batteries at the end of their lifespan in various systems.
  • For customers who require custom modifications as well as Plug and Play solutions.
  • For optimal solutions utilizing modularity.

Package contents:
Fully assembled, tested battery storage ready for immediate use.

Parameters
Brand
Type specification: Battery
Manufacturer: 100MEGA ENERGY
Power supply
Rated Voltage (V): 24
Max. charging current (A): 200
Max. output current (A): 200
Battery/cell voltage (V): 3.2
Optimal charging current (A): 157
Optimal discharge current (A): 157
Battery
Capacity (Ah): 314
Battery Capacity (Wh): 8040
Battery type: LiFePO4
Physical properties
Depth (mm): 675
Weight (kg): 54
Dimensions: 675 × 185 × 355 mm
Width (mm): 185
Height (mm): 355
There are no related products.

Documents and attachments MegaBox LV Energy Box 8,0 kWh

Datasheet (CZ) Datasheet (EN)

Product price timeline.

Logistics parameters

  • Weight: 54 kg
  • Width: 67.5 cm
  • Height: 18.5 cm
  • Depth: 35.5 cm
  • Volume: 44330.6 cm3
  • Qty: 1 ks
